L’importance du déclenchement libre et ses caractéristiques

Trip-free circuit breaker


Anthony T. Ricciuti

Une des nombreuses caractéristiques, souvent souhaitable dans le cahier des charges et la littérature marketing pour les disjoncteurs de moyenne tension est le déclenchement libre.

Malheureusement, il ya beaucoup d’idées fausses au sujet de cette caractéristique et la nécessité de s’entendre sur sa définition. Dans la définition la plus générale de déclenchement libre, les contacts du disjoncteur doivent retourner à la position ouverte et y rester quand une opération d’ouverture suit une opération de fermeture. Une autre variante appelée électrique précise que le déclenchement libre signifie que le disjoncteur doit pouvoir recevoir et répondre à un signal électrique d’ouverture peu importe si le signal de fermeture électrique est sous tension. On peut aussi parler de déclenchement libre mécanique ou hydraulique.

One of the many often desirable characteristics in the specifications and marketing literature for medium voltage circuit breakers is “trip-free.” Unfortunately, there are many misconceptions about this characteristic.

For IEEET rated products, there are several related definitions of “trip-free”:

•    In the most general definition of “trip-free,” the contacts of the circuit breaker must return to the open position and remain there when an opening operation follows a closing operation, regardless of whether the closing signal, force, or action is maintained.
•    A common variant is called “electrically trip-free.” For a medium voltage circuit breaker to be considered electrically trip-free, the circuit breaker must be able to receive and respond to an electrical opening signal regardless of whether an electrical closing signal is energized.
•    “Mechanically trip-free” operations refer to a mechanical release mechanism that can open the medium voltage circuit breaker regardless of whether any closing release device operated by any means is activated or maintained. Medium voltage circuit breakers can also be hydraulically trip-free or pneumatically trip-free if they contain a hydraulic or pneumatic opening release device, respectively, that are capable of opening the circuit breaker regardless of whether any closing release device operated by any means is activated or maintained.

Any of these variants of trip-free operation may include a trip-free relay, in which its operation alters a closing release circuit, permitting an opening release to operate unimpeded by a closing release operation in any state. For IEC rated products, although the standard recommends that the suitability for trip-free operations should be provided to customers that are specifying medium voltage circuit breakers, no specific definition is provided for this function.
Physical requirements

For IEEE rated products, if a mechanical opening release operation is maintained on a medium voltage circuit breaker, then any closing release operation signal must not result in contact movement that reduces the open gap between the contacts by more than 10%. This characteristic is often confused with the definition of trip-free. However, if any opening release operation is initiated simultaneously with any closing release operation signal, contact movement up to and including a momentary touching of the main circuit breaker contacts is acceptable before the circuit breaker completes the opening operation.

Additionally, because electrical opening release operation circuits typically employ auxiliary switch contacts internal to the circuit breaker, and therefore the electrical release operation circuit remains open until the main contacts of the circuit breaker have closed, when an electrical opening release operation circuit is maintained, the momentary touching of the main contacts is acceptable before the circuit breaker completes the opening operation.

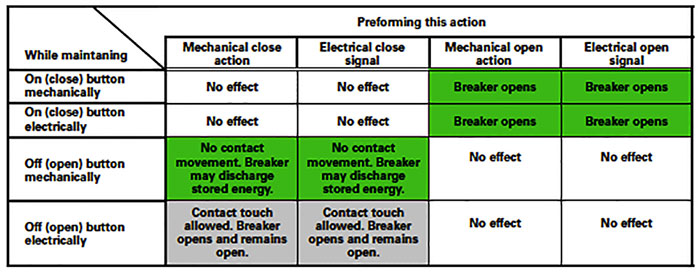

Figure 1: Eaton medium voltage circuit breaker operation

Eaton Circuit breaker Chart

Anthony T. Ricciuti is a Specialist Engineer at Eaton, a power management company with 2014 sales of US$22.6 billion. Anthony has a Bachelor’s degree in Mechanical Engineering and more than 20 years of experience in the design, testing, and analysis of circuit breakers. This article first appeared as an Eaton white paper, www.eaton.com/Eaton/OurCompany/WhitePapers/FeaturedWhitePapers/index.htm.
